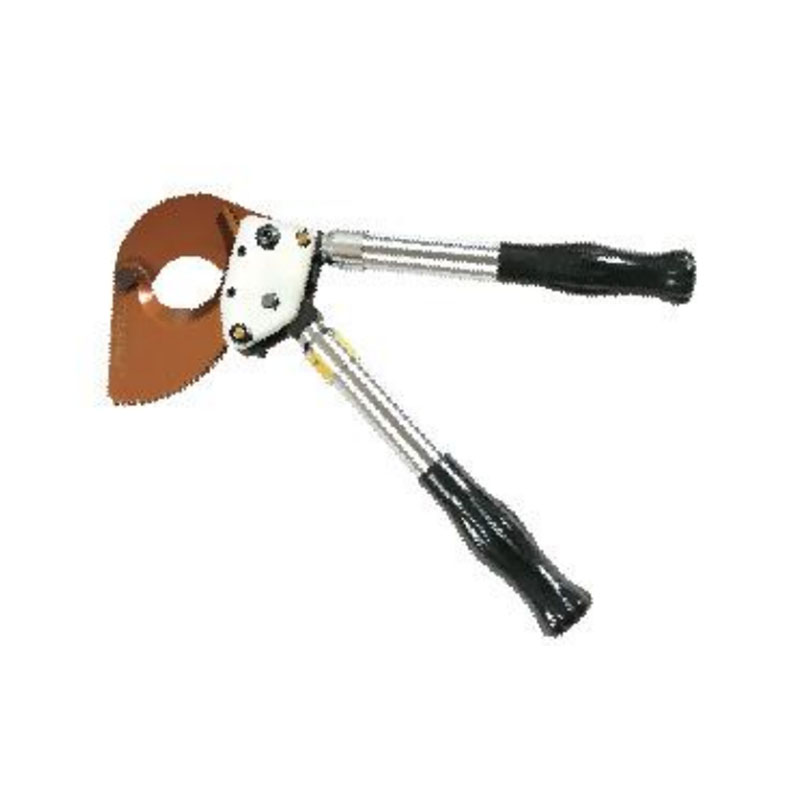

Ratchet Cable Cutter For Cutting Copper Aluminum Armored Cables And Steel Stranded Wires

The Ratchet Cable Cutter is a versatile and robust tool designed for cutting through a variety of materials, including copper, aluminum, armored cables, and steel stranded wires. It is an essential tool for professionals in the electrical, telecommunications, and construction industries, as well as for maintenance and repair tasks.

Cutting Media:

1. Copper and Aluminum Cables:
The Ratchet Cable Cutter is designed to easily cut through copper and aluminum cables, which are commonly used in electrical wiring for their excellent conductivity. Copper is often used for its high conductivity and corrosion resistance, while aluminum is favored for its light weight and lower cost. The tool's hardened steel cutting jaws are precision-engineered to provide clean, precise cuts without damaging the cable's insulation.

2. Armored Cables:
Armored cables, also known as armored electrical cables, are used in applications where additional mechanical protection is required. They are typically used in construction and industrial settings where cables may be exposed to physical damage. The Ratchet Cable Cutter's robust design allows it to cut through the protective armor without compromising the integrity of the internal conductors.

3. Steel Stranded Wires:
Steel stranded wires are used in applications that require high tensile strength, such as in suspension bridges, guy wires, and other load-bearing structures. The Ratchet Cable Cutter's powerful ratchet mechanism and hardened cutting edges are capable of cleanly cutting through these strong, flexible wires.

Applications:

1. Electrical Installation and Maintenance:
In electrical installations, the Ratchet Cable Cutter is used to cut copper and aluminum wires during the wiring process. It is also used for maintenance tasks, such as replacing or repairing damaged cables.

2. Telecommunications:
For telecommunications, the tool is indispensable for cutting coaxial and fiber optic cables, which often have a steel or armored sheath for added protection.

3. Construction:
In construction, the Ratchet Cable Cutter is used to cut through steel reinforcement bars (rebars) and other metal components, as well as armored cables used in building wiring.

4. Automotive and Mechanical Repair:
Automotive technicians and mechanics use the tool to cut steel cables in brake lines, suspension systems, and other mechanical components.

Features and Benefits:

1. Precision Cutting:
The precision-ground cutting edges ensure that the cable is cut cleanly, which is crucial for maintaining the integrity of the cable's performance.

2. Ratchet Mechanism:
The ratchet mechanism allows for easy, one-handed operation, reducing the effort required to cut through tough materials.

3. Ergonomic Design:
The tool's ergonomic design reduces hand fatigue, allowing for extended use without discomfort.

4. Safety Features:
Safety features such as hand guards and slip-resistant grips ensure that the user can operate the tool safely, even in challenging conditions.

5. Durability:
The use of high-quality materials and robust construction ensures that the Ratchet Cable Cutter can withstand the rigors of professional use.

6. Versatility:
The tool's ability to cut through a wide range of materials makes it a versatile addition to any toolkit, suitable for a variety of applications.

7. Easy Maintenance:
Regular maintenance, such as cleaning and oiling the cutting edges, helps to prolong the life of the tool and maintain its performance.

The Ratchet Cable Cutter is a powerful, versatile, and safe tool that is designed to meet the demands of professionals in various industries. Its ability to cut through a wide range of materials, combined with its user-friendly features, makes it an indispensable tool for any job that involves cutting cables or wires.

Model:J13 RATCHETCABLECUTTER

Cuttingrange:Cutting off steelwireropes

smaller than 150mm² and ACSR small than 720mm²

Weight:1.5kg

Package:Fabric bag

Size 350(510)X120x45mm

Model:J30 RATCHETCABLECUTTER

Cutting range:Cutting off steel wire ropes

smaller than 100mm² and ACSR small than 630mm²

Weight:3.5kg

Package:Fabric bag

Size 400(580)x160x60mm

Model:J40 RATCHETCABLECUTTER

Cutting range:Steel and aluminum core mounted cable,1000 pairs communication cable cutting olf CU/AUamoured

cable smaller than 300mmand 1000 pairs of communication cables

Weight:1kg

Package:Fabric bag

Size 330x120x35mm

Model:J50 RATCHETCABLECUTTER

Cutting range:Cutting of steel-core aluminum stranded wire up to 1440 sq. ft.

Cut 1440 square feet below the ACSR

Weight:3.8kg

Package:Fabric bag

Size 350(510)x120x45mm

Model:J52 RATCHETCABLECUTTER

Cutting range:Cutting off CU/ALamouredcable

smaller than 50mm

Weight:2.2kg

Package:Fabric bag

Size 375(540)x150x40mm

Model:J75 RATCHETCABLECUTTER

Cutting range:Steel and aluminum core mounted cable 3600 pairs communication cable cutting off CU/AUamoured cable

smaller than 3x120mmand 3600 pairs of communication cables

Weight:3.5kg

Package:Fabric bag

Size 420(600)x200x55mm

Model:J95 RATCHETCABLECUTTER

Cutting range:Cutting of copper and aluminum armored cables up to 3x185mm% and 95mm in diameter

Cut 3x185mm'and diameter 95mm following copper and aluminum core armored cable

Weight:5.5kg

Package:Fabric bag

Size 610x270x65mm

Model:J100 RATCHETCABLECUTTER

Cutting range:Cutting off CU/AL amoured cable

smaller than 3x300mmor 100mm

Weight:6.5kg

Package:Fabric bag

Size 480(660)x250x50mm

Model:J130 RATCHETCABLECUTTER

Cutting range:Cutting of aluminum-copper core armored cables up to 130 mm in diameter

Cut the diameter of 130mm below the aluminum copper core armored cable

Weight:8.5kg

Package:Fabric bag

Size 524(693)x328x59mm

Model:J160 RATCHETCABLECUTTER

Cutting range:Cutting of copper-aluminum mounted cables up to 160mm in diameter, 6x300mm' copper-aluminum armored cable wires

Cut the diameter of 160mm following copper and aluminum armored cable, 6x300mm copper and aluminum arored cable

Weight:12kg

Package:Fabric bag

Size 560(730)x390x530mm

Model:XLJ-D-300 RATCHETCABLECUTTER

Cutting range:Cutting of copper and aluminum cables up to Φ40 or 300 mm²

Φ40 or 300mm' following copper and aluminum cable cut off

Weight:1.0kg

Package:Fabric bag

Size 235x136x44mm

Model:XLJ-D-500 RATCHETCABLECUTTER

Cutting range:Cutting of copper and aluminum cables up to 500 mm²

Cut off the following copper and aluminum cable 500mm²

Weight:1.2kg

Package:Fabric bag

Size 310(235)x136x44mm

Model:XLJ-D-500B RATCHETCABLECUTTER

Cutting range:Suitable for copper-core aluminum stranded wires up to 600mm² and steel-core cables up to 32mm. Cutting of steel bars under 12mm in strands under 100mm² and cutting of wire ropes between 8-16mm.

Applicable to the folowing 600mm² copper core wire, 32mm following steel core cable. 100mm² below the strand 12mm the following cut off the steel, 8-16 wire rope cut off

Weight:1.9kg

Package:Fabric bag

Size 310(420)x136x45mm

Model:XLJ-65A RATCHETCABLECUTTER

Cutting range:Cutting of copper-aluminum armored cables up to Φ65 or 650 mm²

Φ65 or 650mm' following copper and aluminum armored cable cut off

Weight:3.0kg

Package:Fabric bag

Size 355x206x70mm

Model:XLJ-75A RATCHETCABLECUTTER

Cutting range:Cutting of copper and aluminum armored cables under Φ75

Φ75 following copper, aluminum armored cable cut off

Weight:3.1kg

Package:Fabric bag

Size 355(435)x206x75mm

Model:XLJ-95A RATCHETCABLECUTTER

Cutting range:Cutting of copper or aluminum armored cables up to 1000mm² or up to 95 O.D.

1000mm² or below the outer diameter 95 below copper, aluminum armored cable cut off

Weight:6.3kg

Package:Fabric bag

Size 530(725)x270x80mm

Model:XLJ-100A RATCHETCABLECUTTER

Cutting range:Copper-aluminum core cables and armored cables under 100mm

100mm following copper and aluminum core cable and armored cable

Weight:6.8kg

Package:Fabric bag

Size 550(730)x280x80mm

Model:XLJ-120A RATCHETCABLECUTTER

Cutting range:Cutting of copper or aluminum armored cables up to 1200 mm² or 120 outer diameter or less

1200mm² or below the outer diameter 120 below copper, aluminum armored cable cut off

Weight:7kg

Package:Fabric bag

Size 555(745)x325x80mm

Model:XLJ-130A RATCHETCABLECUTTER

Cutting range:Cutting of copper and aluminum armored cables under Φ130

Φ130 following copper, aluminum armored cable cut off

Weight:15kg

Package:Fabric bag

Size 600(750)x325x80mm

Model: XLJ-160A RATCHETCABLECUTTER

Cutting range: Copper-aluminum cables up to 160mm, armored cables up to Φ140.

Copper and aluminum cable Φ160mm below, armored cable 140 below

Weight:16kg

Package:Fabric bag

Size 630(780)x380x90mm

Model: XLJ-G-40 RATCHETCABLECUTTER

Cutting range: Steel stranded wire under 120mm² Steel core wire under 800mm² Steel core cable under Φ36

120mm² below the steel wire 800mm? below the steel core 36 below the steel core cable

Weight:2.6kg

Package:Fabric bag

Size 350(450)x120x35mm

Model:XLJ-G-60 RATCHETCABLECUTTER

Cutting range:Cutting of steel stranded wires up to 150mm², cutting of steel core aluminum stranded wires up to 1200mm².Cutting of steel core cables below Φ52 and cutting of low carbon steel below Φ16.

150mm² below the cut off the steel strand, 1200mm² below the steel core aluminum wire cut off，Φ52 below the steel core cable cut oft, Φ16 below the low carbon steel cut off

Weight:7.0kg

Package:Fabric bag

Size 525(715)x230x80mm

Model: J40A RATCHETCABLECUTTER

Cutting range: Cutting of copper-aluminum cables up to 300 mm²

Cut the following 300mm² copper and aluminum cable

Weight:1.1kg

Package: Fabric bag

Size 215x130x45mm

Model: XLJ-S-240 RATCHETCABLECUTTER

Cutting range: Copper-aluminum cables up to 240 sq. ft. and low-carbon meta-steel cut-offs up to 6 mm outside diameter

240 square feet below the copper and aluminum cable and diameter of 6mm below the low carbon steel cut off

Weight:2.6kg

Package:Fabric bag

Size 400(555)x95x38mm
